Enter or select the complete part number to find the Solderless Terminals & Splices tooling guide.

Application Tooling for

Hand Tools

Ratchet

Multi Tool

Light Duty

Heavy Duty

Pneumatic

Standard Type

YA-1

YA-2

YA-4

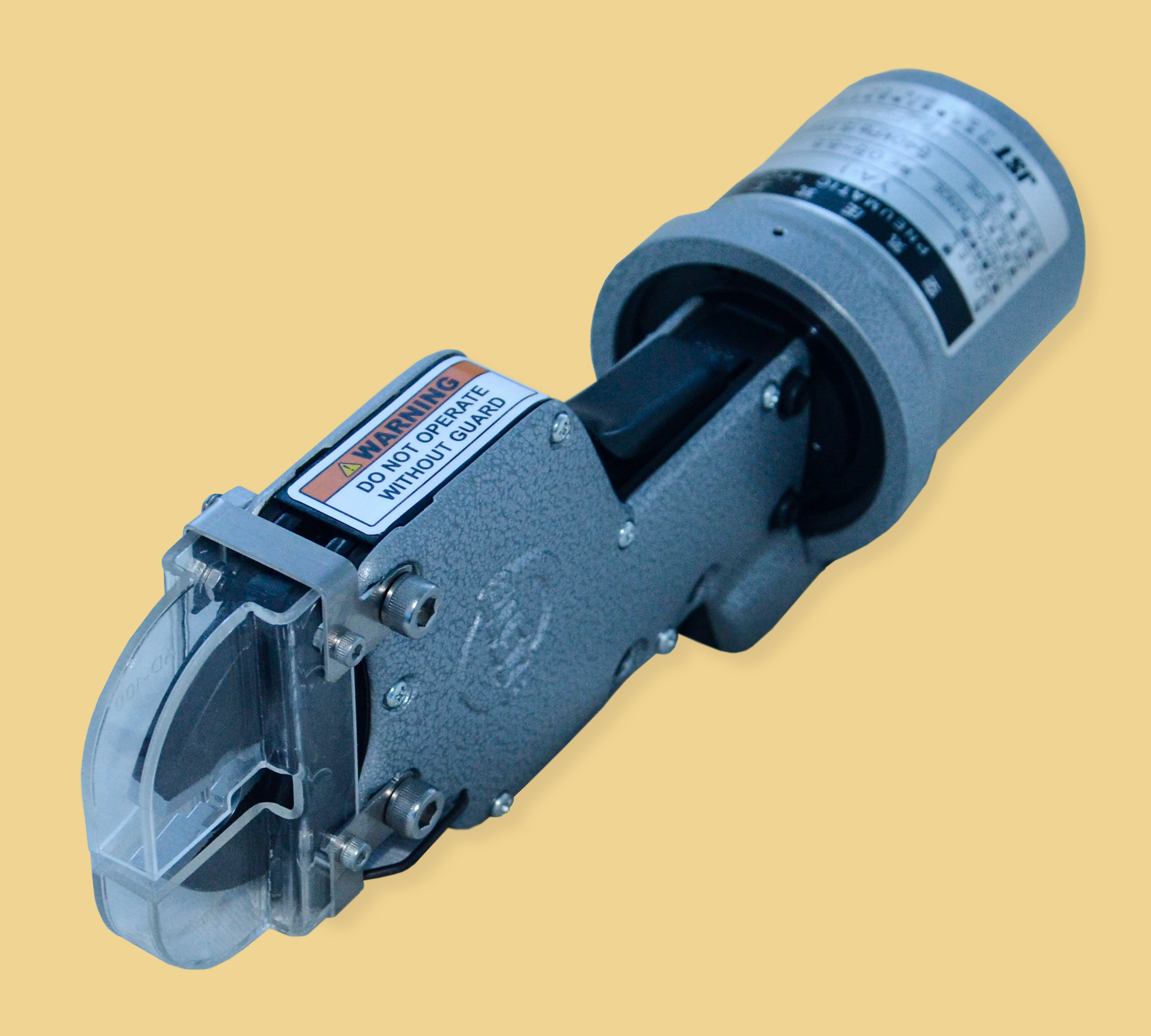

YA-1

Hand-held pneumatic tool for loose piece closed barrel terminals. Dies for the specific terminal are sold separately. Approximate weight 3.8lbs

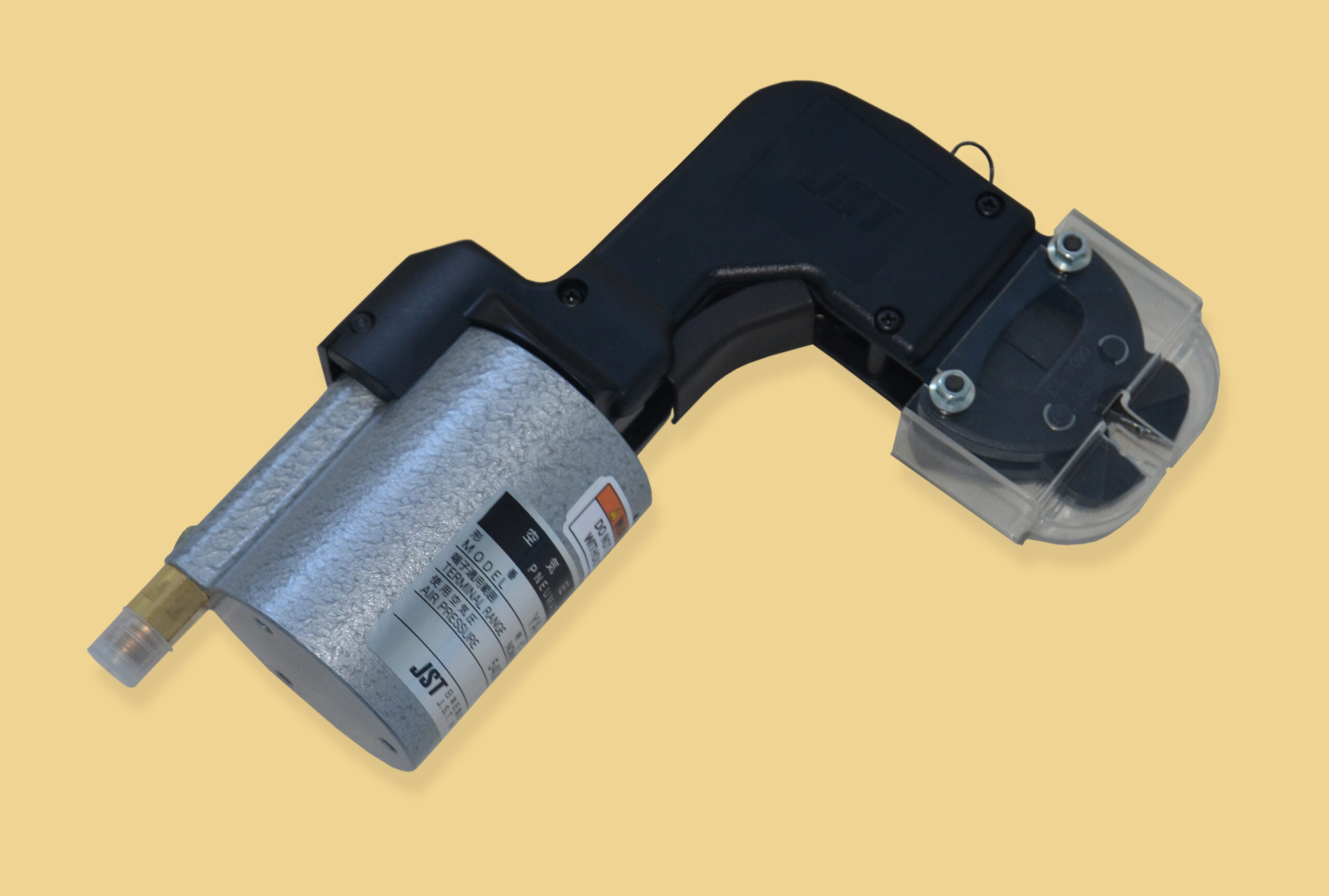

YA-2

Hand-held pneumatic tool for loose piece closed barrel terminals. Dies for the specific terminal are sold separately. Approximate weight 3lbs

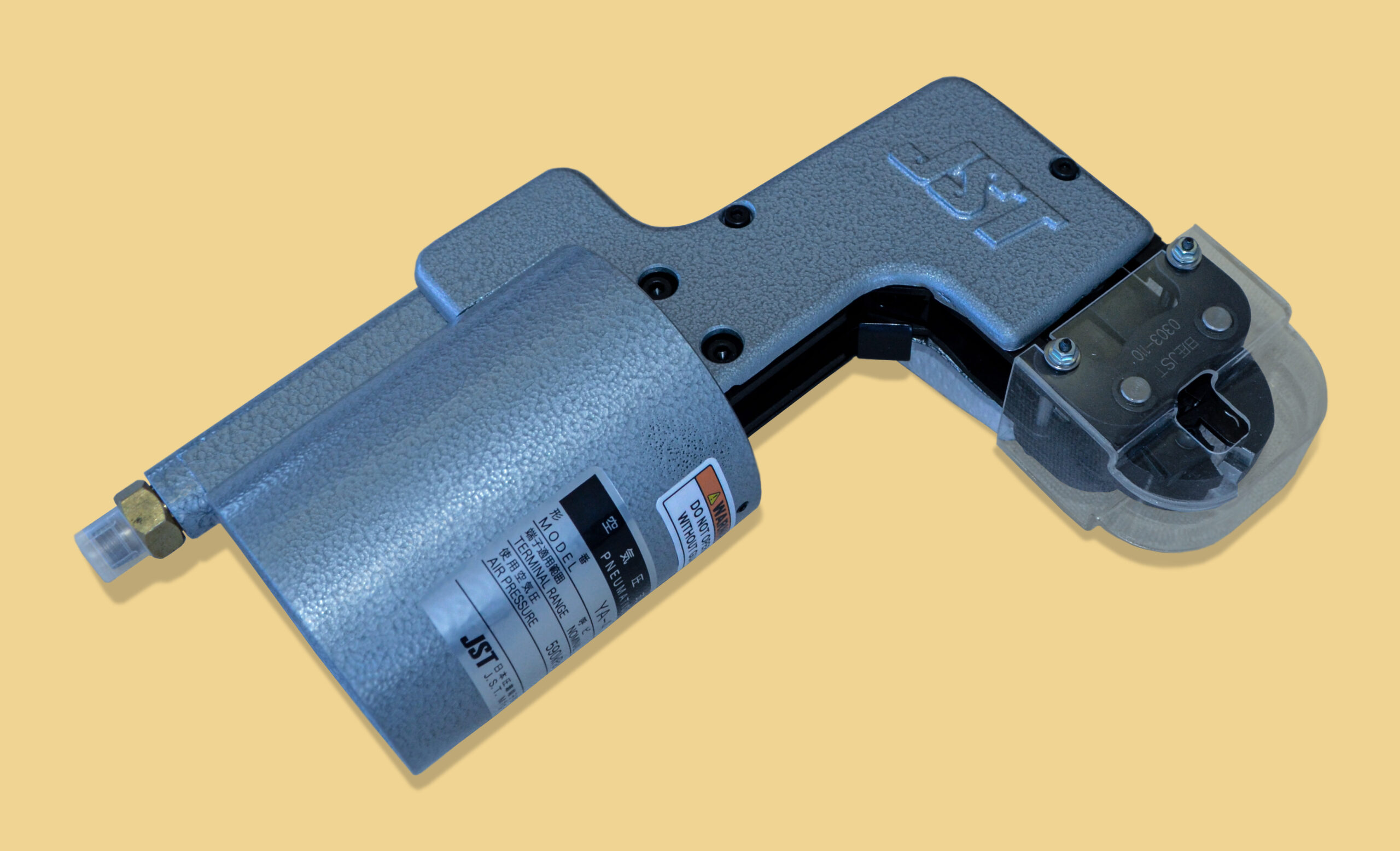

YA-4

Hand-held pneumatic tool for loose piece closed barrel terminals. Dies for the specific terminal are sold separately. Approximate weight 6.6lbs

Bench Type

YA-1A*

YA-2A*

YA-4A*

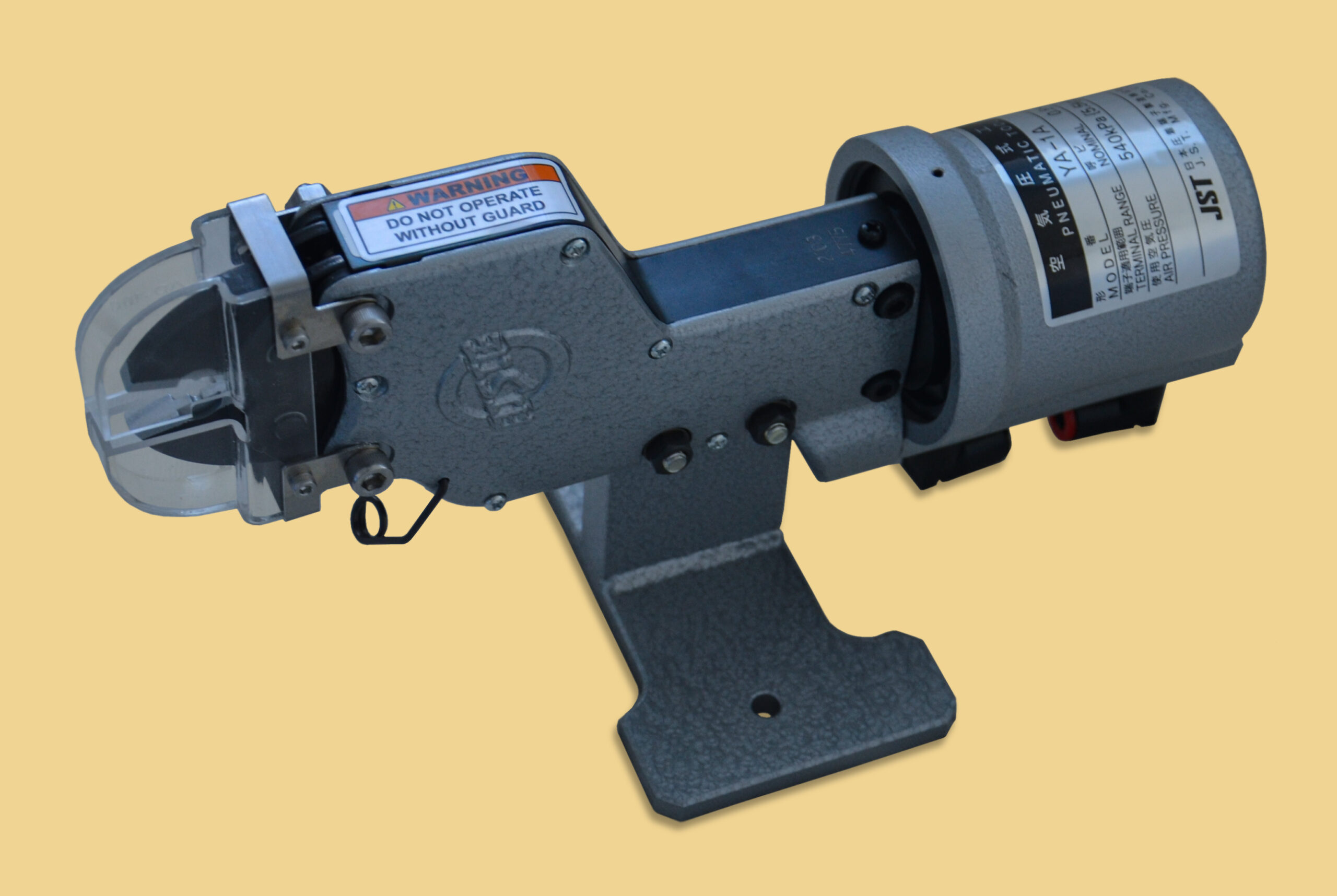

YA-1A

Bench mounted pneumatic tool for loose piece closed barrel terminals. Dies for the specific terminal are sold separately. Approximate weight 5.8lbs

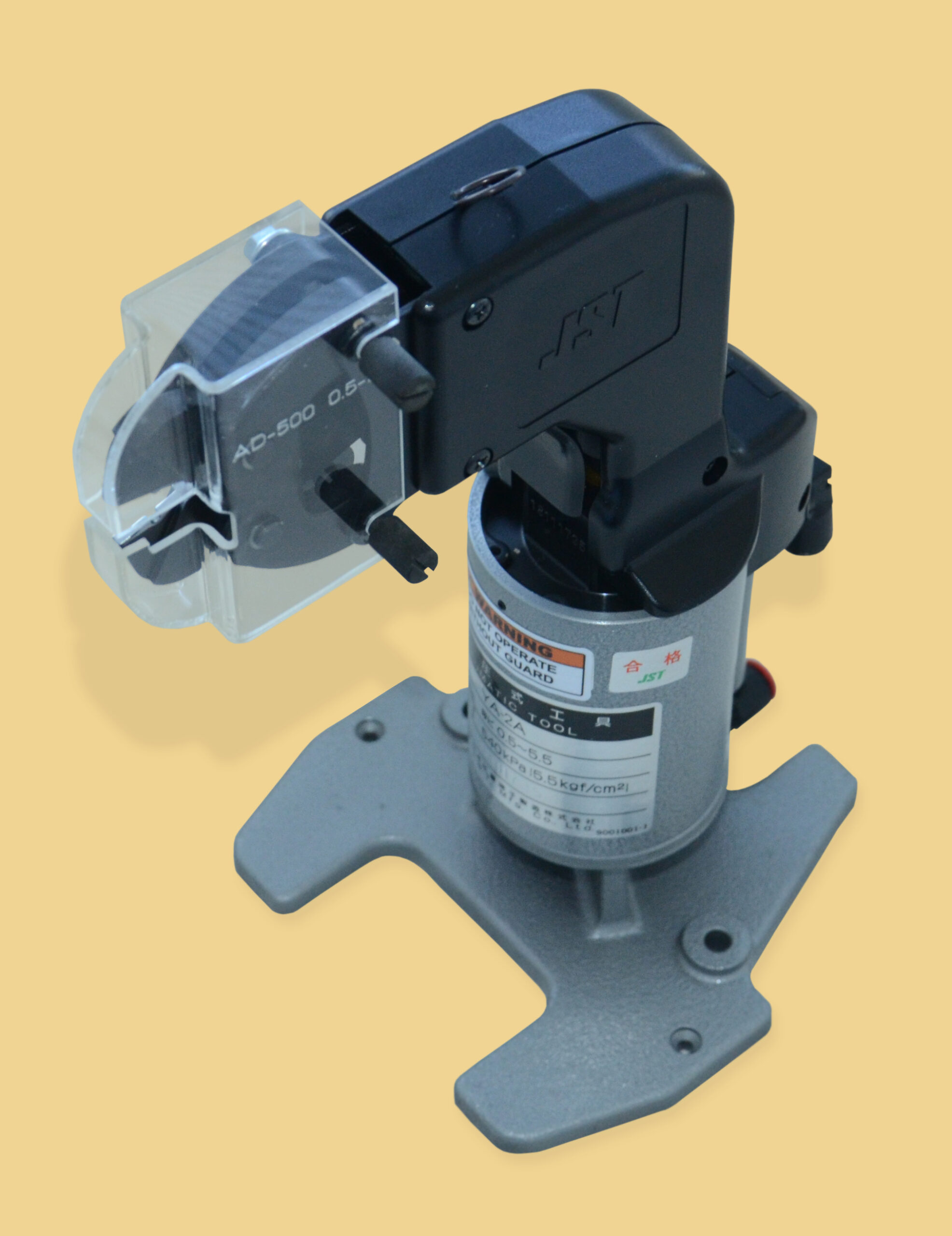

YA-2A

Bench mounted pneumatic tool for loose piece closed barrel terminals. Dies for the specific terminal are sold separately. Approximate weight 3lbs

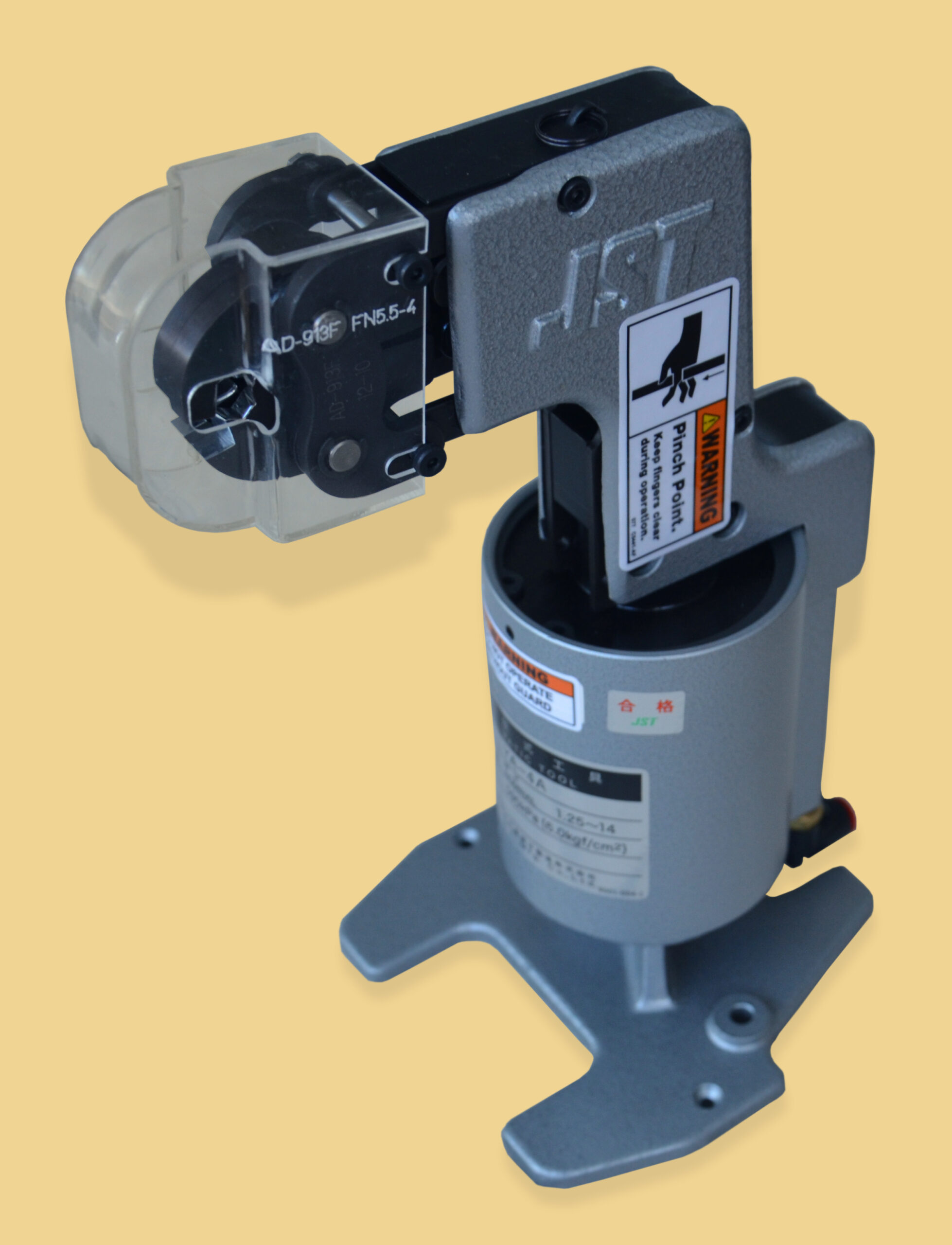

YA-4A

Bench mounted pneumatic tool for loose piece closed barrel terminals. Dies for the specific terminal are sold separately. Approximate weight 6.6lbs

Dies

* AV-250 (air/foot valve) is required
** Dies in parenthesis have a long lead time

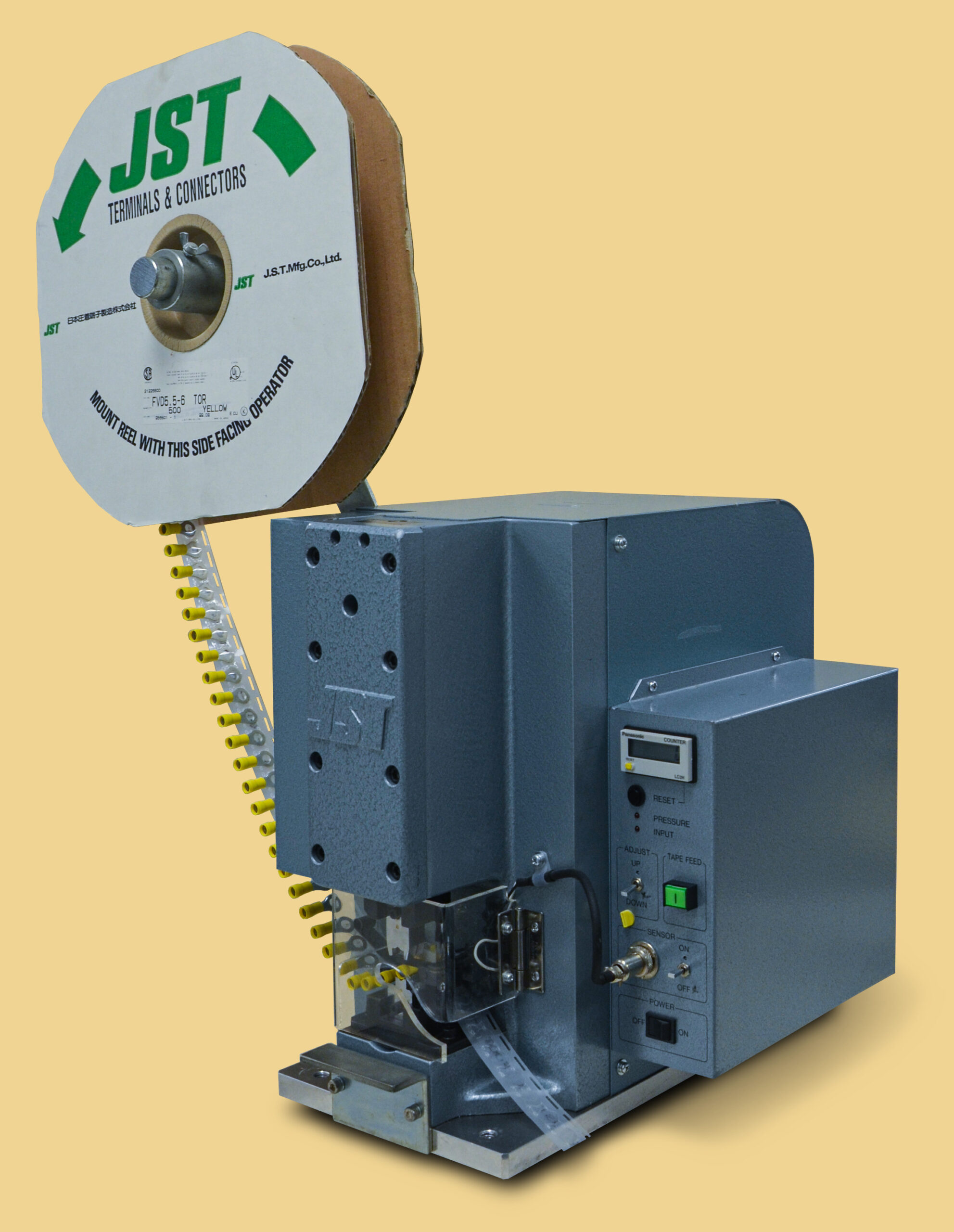

Semi-automatic press for tape on reel terminals: AP-F6

Semi-Automatic: AP-F6

Die for semi-automatic pneumatic bench press for tape on terminals

Note: the dies APF3DS3H**** (for non-insulated terminals crimped with AP-F6) also require an ejector set part number APF3PEJECTOR SET.

Foot operated hydraulic unit: YF-1 or Electrically operated hydraulic unit: E-4

Crimping Heads

YNE-38

Female Die

Male Die

YET-60-1

Female Die

Male Die

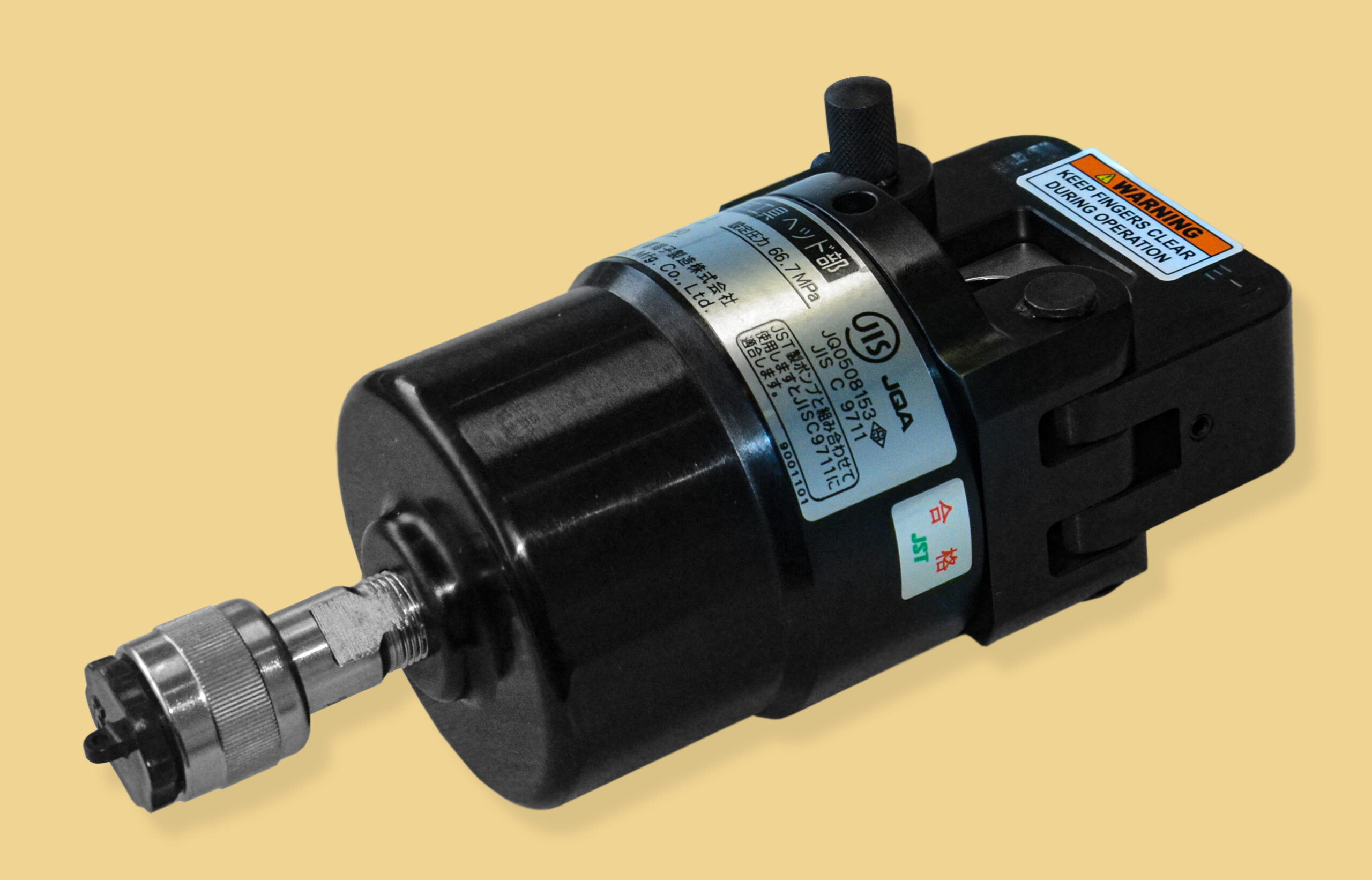

YET-150-1

Female Die

Male Die

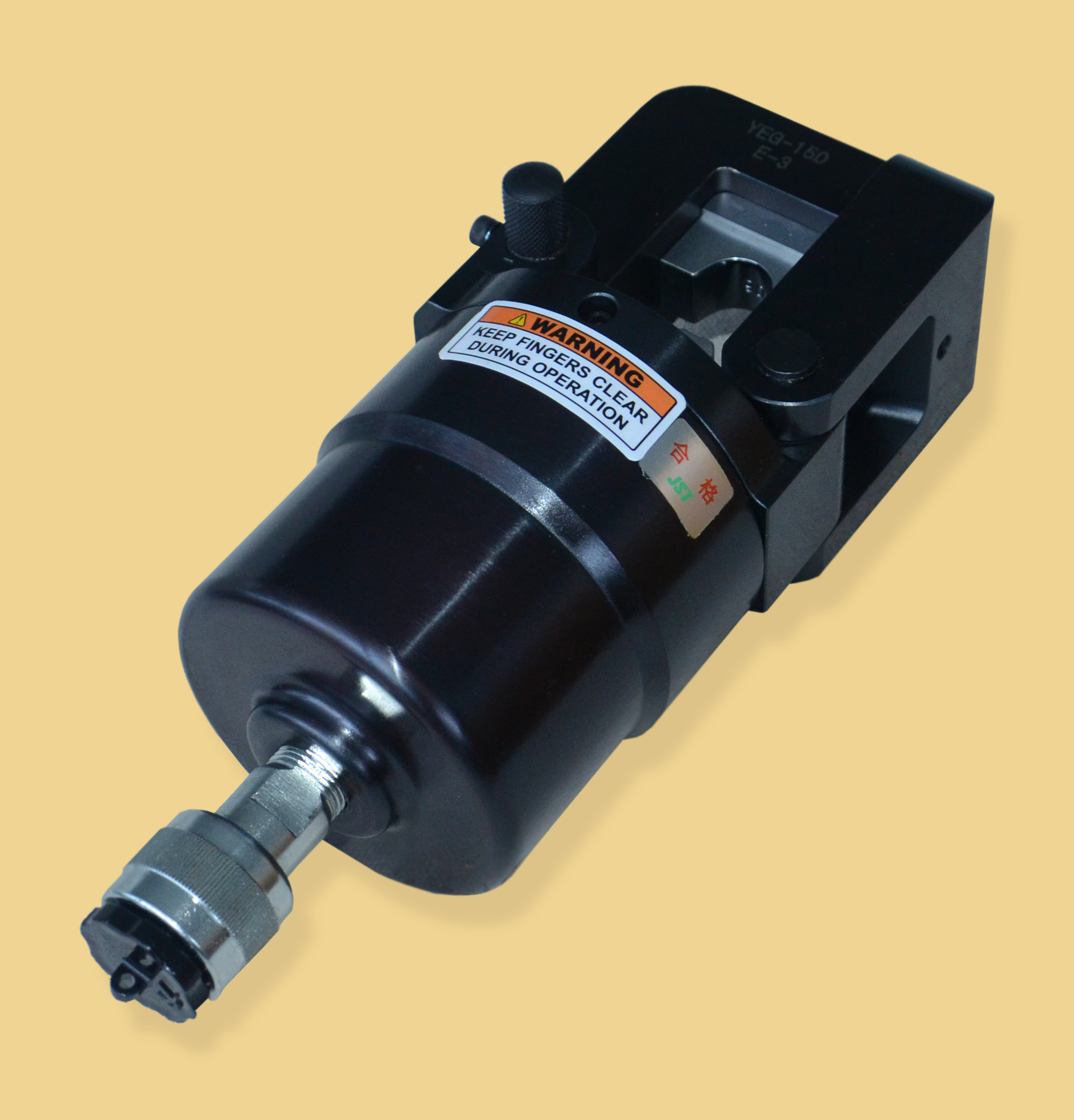

YEG-150

Female Die

Male Die

YET-300-1

Female Die

Male Die
