ZND Connector (W to W)

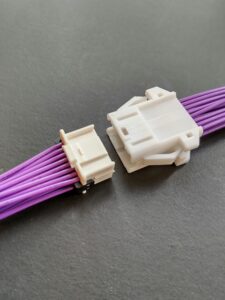

Product Photo
Schematic
Product Description
“The ZND connector is the 1.5 mm pitch dual-row type wire-to-wire connector with secure locking device that is correspondent to the high-density equipment design.
*Secure lock mechanism
*Retainer mountable type
*Panel locking mechanism
*Superior insertion/withdrawal operability (low insersion force type)
*Keying development is available”
Pitch
1.5 mmCurrent Rating
2A (AWG #24)Voltage Rating
100VFeatures
With secure locking device
