XL connector (W to W)

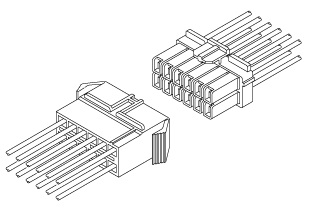

Product Photo
Schematic
Product Description
*The box-shaped contacts serve as socket contacts in a wide variety of applications from low-voltage, low-current signal circuits to power supply circuits. *Since the contacts are individually and totally surrounded by housing walls (egg-crate style), and since the contact pitch is 5.0mm, the electrical creep distances and dielectric spacing are great enough to meet most safety requirements.
Pitch
5.0 mmCurrent Rating
MAX 10AVoltage Rating
MAX 300VFeatures
With secure locking device
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
