HM connector
Product Photo
Schematic
Product Description

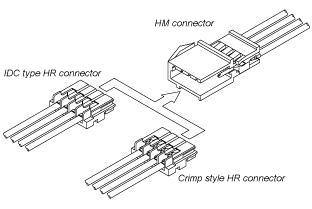

Matable with HR receptacles *Both crimp style and insulation displacement HR connector receptacles can be accommodated by the HM connector. *Housing lances *Mountable on panels of various thickness without using tools. *The contacts are individually and totally surrounded by housing walls.
Pitch
2.5 mmCurrent Rating
Insulation displacement HR/MAX 2A, Crimp style HR/MAX 3AVoltage Rating
MAX 250VTo purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
Product Photo
Product Description
Matable with HR receptacles *Both crimp style and insulation displacement HR connector receptacles can be accommodated by the HM connector. *Housing lances *Mountable on panels of various thickness without using tools. *The contacts are individually and totally surrounded by housing walls.
Pitch
2.5 mmCurrent Rating
Insulation displacement HR/MAX 2A, Crimp style HR/MAX 3AVoltage Rating
MAX 250VFeatures
Schematic
To purchase this product, find a distributor or representative in your area.
You can also request a free sample. If you have questions, call (800) 947-1110.
