FHSY Connector
Product Photo

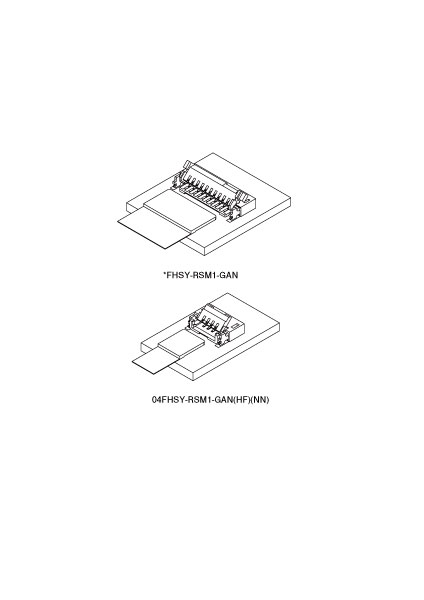

Schematic
Product Description
This ZIF type ‘flip lock’ FPC connector achieves a low-profile feature of a 0.9mm mounting height despite the thickness of the FPC being 0.3mm.
Pitch
0.5 mmCurrent Rating
0.5AVoltage Rating
50VFeatures
Low-profile, Depth space saving
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
eFHSY.pdf |
VIEW MORE DETAILS
|
|---|
| Model Number | 3D Data |
|---|---|
| 04FHSY-RSM1-GAN-TB |
DOWNLOAD
|
| 05FHSY-RSM1-GAN-TB |
DOWNLOAD
|
| 06FHSY-RSM1-GAN-TB |
DOWNLOAD
|
| 08FHSY-RSM1-GAN-TB |
DOWNLOAD
|
| 10FHSY-RSM1-GAN-TB |
DOWNLOAD
|
| 11FHSY-RSM1-GAN-TB |
DOWNLOAD
|
| 12FHSY-RSM1-GAN-TB |
DOWNLOAD
|
| 14FHSY-RSM1-GAN-TB |
DOWNLOAD
|
| 15FHSY-RSM1-GAN-TB |
DOWNLOAD
|
| 16FHSY-RSM1-GAN-TB |
DOWNLOAD
|
| 17FHSY-RSM1-GAN-TB |
DOWNLOAD
|
| 18FHSY-RSM1-GAN-TB |
DOWNLOAD
|
| 20FHSY-RSM1-GAN-TB |
DOWNLOAD
|
| 22FHSY-RSM1-GAN-TB |
DOWNLOAD
|
| 24FHSY-RSM1-GAN-TB |
DOWNLOAD
|
| 27FHSY-RSM1-GAN-TB |
DOWNLOAD
|
| 28FHSY-RSM1-GAN-TB |
DOWNLOAD
|
