Product Series

Automotive Connectors

Filter by:

Pitch

Current Rating

Voltage Rating

Close up image of JFA Connector J2000 series (W to B)

JFA Connector J2000 series (W to B)

Pitch (mm)

2.500

Current Rating (A)

4.6

Voltage Rating (V)

250

Features

With secure locking device, High electric current capacity, High withstanding voltage
Close up image of PAD Connector

PAD Connector

Pitch (mm)

2.00

Current Rating (A)

3

Voltage Rating (V)

250

Features

With secure locking device
Close up image of GHD Connector (Tin-plated product)

GHD Connector (Tin-plated product)

Pitch (mm)

1.25

Current Rating (A)

1.25, 1.0 0.8

Voltage Rating (V)

50

Features

With secure locking device
Close up image of VL connector (W to W)

VL connector (W to W)

Pitch (mm)

6.20

Current Rating (A)

20

Voltage Rating (V)

600

Features

With secure locking device
Close up image of VL Connector (W to B)

VL Connector (W to B)

Pitch (mm)

6.200

Current Rating (A)

20

Voltage Rating (V)

600

Features

With secure locking device
Close up image of VH Connector

VH Connector

Pitch (mm)

3.960

Current Rating (A)

10

Voltage Rating (V)

250

Features

With secure locking device
Close up image of UB3 Connector

UB3 Connector

Pitch (mm)

Current Rating (A)

1.8, 0.25

Voltage Rating (V)

30

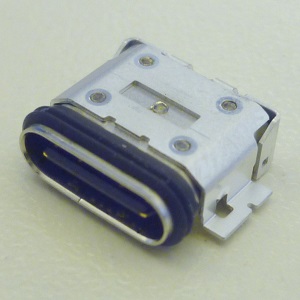

Close up image of UBC connector (Dustproof and waterproof type)

UBC connector (Dustproof and waterproof type)

Pitch (mm)

Current Rating (A)

1.25, 0.25

Voltage Rating (V)

20
Close up image of UBC Connector

UBC Connector

Pitch (mm)

Current Rating (A)

1.25, 0.25

Voltage Rating (V)

20
Close up image of UB Connector

UB Connector

Pitch (mm)

Current Rating (A)

1.0

Voltage Rating (V)

30
Close up image of TLDR Connector

TLDR Connector

Pitch (mm)

3.50

Current Rating (A)

5

Voltage Rating (V)

600

Features

Low-profile
Close up image of TCUD Connector

TCUD Connector

Pitch (mm)

2.55

Current Rating (A)

7, 5

Voltage Rating (V)

1000
Close up image of SRV Connector

SRV Connector

Pitch (mm)

Current Rating (A)

3

Voltage Rating (V)

14
Close up image of SQZ Connector

SQZ Connector

Pitch (mm)

Current Rating (A)

3

Voltage Rating (V)

Close up image of SQXW Connector

SQXW Connector

Pitch (mm)

Current Rating (A)

3

Voltage Rating (V)

Close up image of SQW connector

SQW connector

Pitch (mm)

Current Rating (A)

Voltage Rating (V)

Close up image of SQSK Connector

SQSK Connector

Pitch (mm)

Current Rating (A)

3

Voltage Rating (V)

Close up image of SQSâ…ˇ Connector

SQSâ…ˇ Connector

Pitch (mm)

Current Rating (A)

Voltage Rating (V)

Close up image of SQS Connector

SQS Connector

Pitch (mm)

Current Rating (A)

Voltage Rating (V)

Close up image of SQN Connector

SQN Connector

Pitch (mm)

Current Rating (A)

3

Voltage Rating (V)

Close up image of SQM Connector

SQM Connector

Pitch (mm)

Current Rating (A)

Voltage Rating (V)

Close up image of SQH Connector

SQH Connector

Pitch (mm)

Current Rating (A)

Voltage Rating (V)

Close up image of SQF Connector

SQF Connector

Pitch (mm)

Current Rating (A)

Voltage Rating (V)

Close up image of SQB Connector

SQB Connector

Pitch (mm)

Current Rating (A)

3

Voltage Rating (V)

Close up image of SPH2 Connector

SPH2 Connector

Pitch (mm)

Current Rating (A)

5, 100

Voltage Rating (V)

450
Close up image of SNA Connector

SNA Connector

Pitch (mm)

Current Rating (A)

5

Voltage Rating (V)

14
Close up image of SL Connector

SL Connector

Pitch (mm)

3.96

Current Rating (A)

7

Voltage Rating (V)

300

Features

With secure locking device
Close up image of SJG Terminal

SJG Terminal

Pitch (mm)

Current Rating (A)

Voltage Rating (V)

Close up image of SISC Connector

SISC Connector

Pitch (mm)

0.64

Current Rating (A)

5

Voltage Rating (V)

1000
Close up image of Shunt Ring

Shunt Ring

Pitch (mm)

Current Rating (A)

Voltage Rating (V)

Close up image of SHC Connector

SHC Connector

Pitch (mm)

Current Rating (A)

7

Voltage Rating (V)

50
Close up image of SBO2 Connector

SBO2 Connector

Pitch (mm)

Current Rating (A)

3

Voltage Rating (V)

24
Close up image of SBO Connector

SBO Connector

Pitch (mm)

Current Rating (A)

3

Voltage Rating (V)

24
Close up image of SAC Connector

SAC Connector

Pitch (mm)

Current Rating (A)

5

Voltage Rating (V)

14
Close up image of SAB Connector

SAB Connector

Pitch (mm)

Current Rating (A)

5

Voltage Rating (V)

14
Close up image of RAD Connector

RAD Connector

Pitch (mm)

Current Rating (A)

5, 15, 25

Voltage Rating (V)

14
Close up image of PFW Connector

PFW Connector

Pitch (mm)

Current Rating (A)

5

Voltage Rating (V)

14
Close up image of PUD Connector

PUD Connector

Pitch (mm)

2.000

Current Rating (A)

3

Voltage Rating (V)

250

Features

With secure locking device
Close up image of PNI connector (W to W)

PNI connector (W to W)

Pitch (mm)

2.00

Current Rating (A)

3

Voltage Rating (V)

100

Features

With secure locking device, With an inertia lock mechanism
Close up image of PNI Connector

PNI Connector

Pitch (mm)

2.000

Current Rating (A)

3

Voltage Rating (V)

100

Features

With secure locking device, With an inertia lock mechanism
Close up image of PHD Connector

PHD Connector

Pitch (mm)

2.00

Current Rating (A)

3

Voltage Rating (V)

250
Close up image of PEA Connector

PEA Connector

Pitch (mm)

Current Rating (A)

1, 6.5

Voltage Rating (V)

50

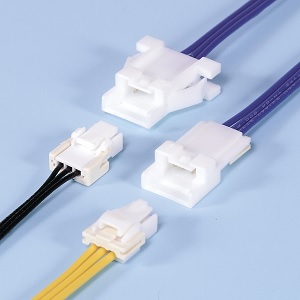

Close up image of PAL Connector

PAL Connector

Pitch (mm)

2.00

Current Rating (A)

3

Voltage Rating (V)

100

Features

With secure locking device
Close up image of PA Connector

PA Connector

Pitch (mm)

2.00

Current Rating (A)

3

Voltage Rating (V)

250, 100

Features

With secure locking device
Close up image of NFG Connector

NFG Connector

Pitch (mm)

Current Rating (A)

5, 7

Voltage Rating (V)

5
Close up image of NAC-I Connector

NAC-I Connector

Pitch (mm)

Current Rating (A)

5

Voltage Rating (V)

14

Features

Low-profile
Close up image of MWT Connector

MWT Connector

Pitch (mm)

Current Rating (A)

3.5

Voltage Rating (V)

Close up image of MSA Terminal

MSA Terminal

Pitch (mm)

Current Rating (A)

Voltage Rating (V)

Close up image of MSA Connector

MSA Connector

Pitch (mm)

Current Rating (A)

14, 19

Voltage Rating (V)

14
Close up image of MIO Connector

MIO Connector

Pitch (mm)

Current Rating (A)

5

Voltage Rating (V)

12
Close up image of MEC Connector

MEC Connector

Pitch (mm)

2.00

Current Rating (A)

3

Voltage Rating (V)

50

Features

Low-profile
Close up image of JUNCTION BOX

JUNCTION BOX

Pitch (mm)

Current Rating (A)

Voltage Rating (V)

Close up image of JWPS connector (W to W)

JWPS connector (W to W)

Pitch (mm)

4.00

Current Rating (A)

4 , 5 , 6

Voltage Rating (V)

300

Features

With secure locking device, Waterproof
Close up image of JWPF Connector

JWPF Connector

Pitch (mm)

2.00

Current Rating (A)

3

Voltage Rating (V)

100

Features

With secure locking device, Waterproof
Close up image of JQ Connector

JQ Connector

Pitch (mm)

2.50

Current Rating (A)

3

Voltage Rating (V)

250
Close up image of JMC Connector

JMC Connector

Pitch (mm)

0.50

Current Rating (A)

0.5

Voltage Rating (V)

50

Features

Absorbing PC board misalignment
Close up image of JL Connector

JL Connector

Pitch (mm)

2.50

Current Rating (A)

3

Voltage Rating (V)

250
Close up image of JIA Connector

JIA Connector

Pitch (mm)

Current Rating (A)

5, 15

Voltage Rating (V)

14
Close up image of JFA Connector J5000 series(W to W)

JFA Connector J5000 series(W to W)

Pitch (mm)

11.00

Current Rating (A)

50

Voltage Rating (V)

600

Features

With secure locking device, High electric current capacity, High withstanding voltage
Close up image of JFA Connector J4000 Series (W to B 6.35mm pitch)

JFA Connector J4000 Series (W to B 6.35mm pitch)

Pitch (mm)

6.350

Current Rating (A)

20

Voltage Rating (V)

600

Features

With secure locking device, High electric current capacity, High withstanding voltage
Close up image of JFA Connector J4000 Series (W to B 6.0mm pitch)

JFA Connector J4000 Series (W to B 6.0mm pitch)

Pitch (mm)

6.000

Current Rating (A)

20

Voltage Rating (V)

600

Features

With secure locking device, High electric current capacity, High withstanding voltage
Close up image of JFA Connector J300 series 5.4mm pitch

JFA Connector J300 series 5.4mm pitch

Pitch (mm)

5.40

Current Rating (A)

5

Voltage Rating (V)

600
Close up image of JFA connector J300 series  5.08 mm Pitch

JFA connector J300 series  5.08 mm Pitch

Pitch (mm)

5.08

Current Rating (A)

15

Voltage Rating (V)

600

Features

With secure locking device, High electric current capacity, High withstanding voltage
Close up image of JFA Connector J300 series (W to B 5.08mm pitch)

JFA Connector J300 series (W to B 5.08mm pitch)

Pitch (mm)

5.080

Current Rating (A)

15

Voltage Rating (V)

600

Features

With secure locking device, High electric current capacity, High withstanding voltage
Close up image of JFA Connector J300 series (W to B 3.81mm pitch)

JFA Connector J300 series (W to B 3.81mm pitch)

Pitch (mm)

3.810

Current Rating (A)

15

Voltage Rating (V)

250

Features

With secure locking device, High electric current capacity, High withstanding voltage
Close up image of JFA connector J1000 Series (W to W)

JFA connector J1000 Series (W to W)

Pitch (mm)

2.20

Current Rating (A)

6.4

Voltage Rating (V)

125

Features

With secure locking device
Close up image of JFA Connector J1000 Series (W to B)

JFA Connector J1000 Series (W to B)

Pitch (mm)

2.200

Current Rating (A)

6.4

Voltage Rating (V)

125

Features

With secure locking device
Close up image of HVGW Connector

HVGW Connector

Pitch (mm)

Current Rating (A)

135

Voltage Rating (V)

300
Close up image of HVGT Connector

HVGT Connector

Pitch (mm)

Current Rating (A)

30

Voltage Rating (V)

300
Close up image of HVD Connector

HVD Connector

Pitch (mm)

Current Rating (A)

4.5

Voltage Rating (V)

14

Features

Low-profile
Close up image of HSDP Connector

HSDP Connector

Pitch (mm)

Current Rating (A)

5, 14

Voltage Rating (V)

14
Close up image of HPS Connector

HPS Connector

Pitch (mm)

Current Rating (A)

5

Voltage Rating (V)

14

Features

Sealed
Close up image of HIT Connector

HIT Connector

Pitch (mm)

2.20

Current Rating (A)

5, 25

Voltage Rating (V)

14
Close up image of HIE Connector

HIE Connector

Pitch (mm)

Current Rating (A)

0.5

Voltage Rating (V)

40
Close up image of HIC Connector

HIC Connector

Pitch (mm)

2.20

Current Rating (A)

5

Voltage Rating (V)

14
Close up image of HCM Connector

HCM Connector

Pitch (mm)

2.54

Current Rating (A)

5

Voltage Rating (V)

14

Features

Low-profile
Close up image of HCH Connector

HCH Connector

Pitch (mm)

2.54

Current Rating (A)

5

Voltage Rating (V)

50
Close up image of GIT Connector (18P type)

GIT Connector (18P type)

Pitch (mm)

Current Rating (A)

5

Voltage Rating (V)

14
Close up image of GIT Connector

GIT Connector

Pitch (mm)

Current Rating (A)

5

Voltage Rating (V)

1000
Close up image of FOX Connector

FOX Connector

Pitch (mm)

1.25

Current Rating (A)

1.5

Voltage Rating (V)

12
Close up image of FLZT Connector

FLZT Connector

Pitch (mm)

0.50

Current Rating (A)

0.5

Voltage Rating (V)

50
Close up image of FLZ Connector

FLZ Connector

Pitch (mm)

0.50

Current Rating (A)

0.5

Voltage Rating (V)

50

Features

Low-profile
Close up image of FLT Connector

FLT Connector

Pitch (mm)

0.50

Current Rating (A)

0.5

Voltage Rating (V)

50
Close up image of FAB Connector

FAB Connector

Pitch (mm)

Current Rating (A)

5

Voltage Rating (V)

14
Close up image of EVZ2 Connector

EVZ2 Connector

Pitch (mm)

2.55

Current Rating (A)

5

Voltage Rating (V)

1000
Close up image of EA2 Connector

EA2 Connector

Pitch (mm)

Current Rating (A)

1

Voltage Rating (V)

250
Close up image of EH Connector

EH Connector

Pitch (mm)

2.500

Current Rating (A)

3

Voltage Rating (V)

250
Close up image of EA1 Connector

EA1 Connector

Pitch (mm)

Current Rating (A)

1

Voltage Rating (V)

250
Close up image of CPT Connector

CPT Connector

Pitch (mm)

2.00

Current Rating (A)

3

Voltage Rating (V)

50
Close up image of CPI Connector

CPI Connector

Pitch (mm)

Current Rating (A)

3

Voltage Rating (V)

50
Close up image of CN Connector (For automotive)

CN Connector (For automotive)

Pitch (mm)

Current Rating (A)

1

Voltage Rating (V)

250
Close up image of CIT Connector

CIT Connector

Pitch (mm)

Current Rating (A)

5

Voltage Rating (V)

50
Close up image of BIC Connector

BIC Connector

Pitch (mm)

Current Rating (A)

3

Voltage Rating (V)

16
Close up image of BCC Connector

BCC Connector

Pitch (mm)

Current Rating (A)

15

Voltage Rating (V)

14
Close up image of BAB Connector

BAB Connector

Pitch (mm)

5.00

Current Rating (A)

3, 5

Voltage Rating (V)

1000
Close up image of ATSS connector

ATSS connector

Pitch (mm)

Current Rating (A)

5

Voltage Rating (V)

14
Close up image of ATLC Connector

ATLC Connector

Pitch (mm)

Current Rating (A)

5

Voltage Rating (V)

14
Close up image of ATL Connector

ATL Connector

Pitch (mm)

Current Rating (A)

5

Voltage Rating (V)

14

Features

Low-profile
Close up image of ASU Connector

ASU Connector

Pitch (mm)

Current Rating (A)

1

Voltage Rating (V)

30
Close up image of ASG Connector

ASG Connector

Pitch (mm)

Current Rating (A)

5, 40

Voltage Rating (V)

14
Close up image of ARV Connector

ARV Connector

Pitch (mm)

Current Rating (A)

5

Voltage Rating (V)

14
Close up image of AIT-II Connector

AIT-II Connector

Pitch (mm)

Current Rating (A)

5

Voltage Rating (V)

14

Features

Low-profile
Close up image of AIT Connector

AIT Connector

Pitch (mm)

2.54

Current Rating (A)

5

Voltage Rating (V)

14
Close up image of ACA Connector

ACA Connector

Pitch (mm)

Current Rating (A)

3

Voltage Rating (V)

250
Close up image of 1.5 Female Terminal

1.5 Female Terminal

Pitch (mm)

Current Rating (A)

Voltage Rating (V)

Close up image of ZRO Connector

ZRO Connector

Pitch (mm)

Current Rating (A)

5, 7

Voltage Rating (V)

50
Close up image of WIC Connector

WIC Connector

Pitch (mm)

Current Rating (A)

5

Voltage Rating (V)

14
Close up image of TRZ Connector

TRZ Connector

Pitch (mm)

Current Rating (A)

5

Voltage Rating (V)

50
JST footer logo JST footer logo JST footer logo

North American Headquarters

JST Sales America, Inc.
1957 S. Lakeside Drive
Waukegan, IL 60085 USA
(847) 473-1957
Products Innovation Resources About Contact

Copyright © 2024 JST Sales America, Inc. All rights reserved.
Privacy Policies | Quality Policy | Conflict Minerals Policy | Terms of Use
