PAL Connector

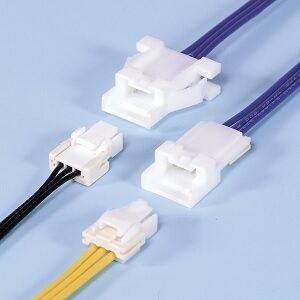

Product Photo

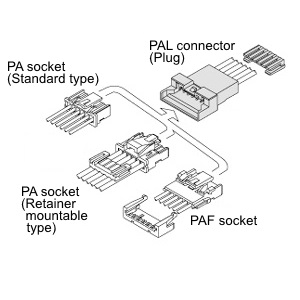

Schematic
Product Description
Applicable to both crimp and insulation displacement style receptacles. *Secure locking device prevents accidental disconnection. *Secondary retainers provide added protection against incomplete insertion or disconnection. *Panel locking type is also available.
Pitch
2.0 mmCurrent Rating
3A (AWG#22)Voltage Rating
100VFeatures
With secure locking device
