Product Category > Automotive Connectors > JMC Connector
JMC Connector
Product Photo

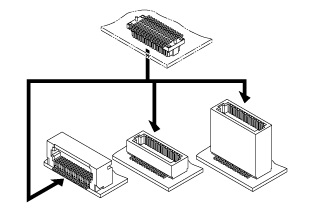

Schematic
Product Description
This JMC connector is 0.5mm pitch SMT type board to board connector with selection of boss existence. Comparing with conventional JMC connector, smaller and space saving are realized. Various types are available such as top/side entry type connectors including the development of the stacking height variation for plug and the absorption misalignment type for receptacle.
Pitch
0.5 mmCurrent Rating
0.5AVoltage Rating
50VFeatures
Absorbing PC board misalignment
To purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
