RSXA Connector

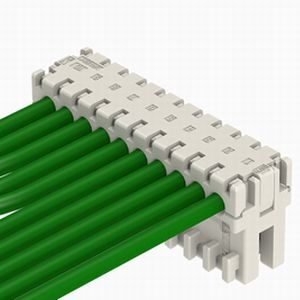

Product Photo

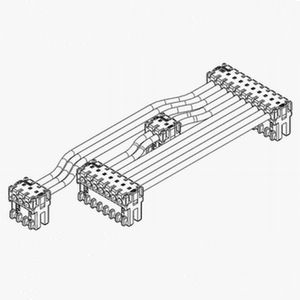

Schematic
Product Description
This connector is 2.5 mm pitch card-edge type insulation displacement connector.
・Conform with RAST 2.5 standard
・IDC (Insulation displacement connection) with twin U-slot contact design to provide extra stability.
・Various polarizing features, keying option and locking features available.
・Daisy chain option available.
・2 to 10 Circuits
Pitch
2.5mmCurrent Rating
4.0A (AWG#22)2.0A (AWG#24)
Voltage Rating
250VTo purchase this product, find a distributor or representative in your area. You can also request a free sample. If you have questions, call (800) 947-1110.
eRSXA.pdf |
VIEW MORE DETAILS
|
|---|
